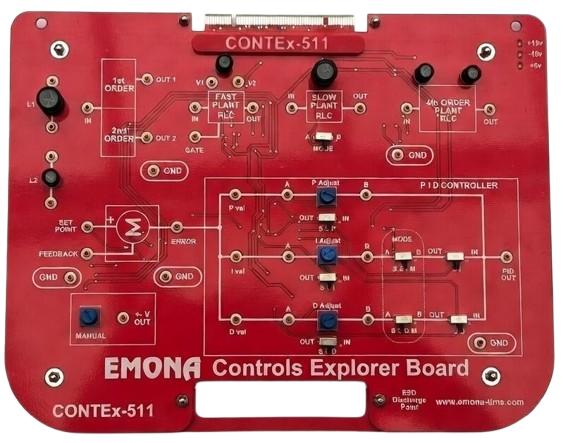

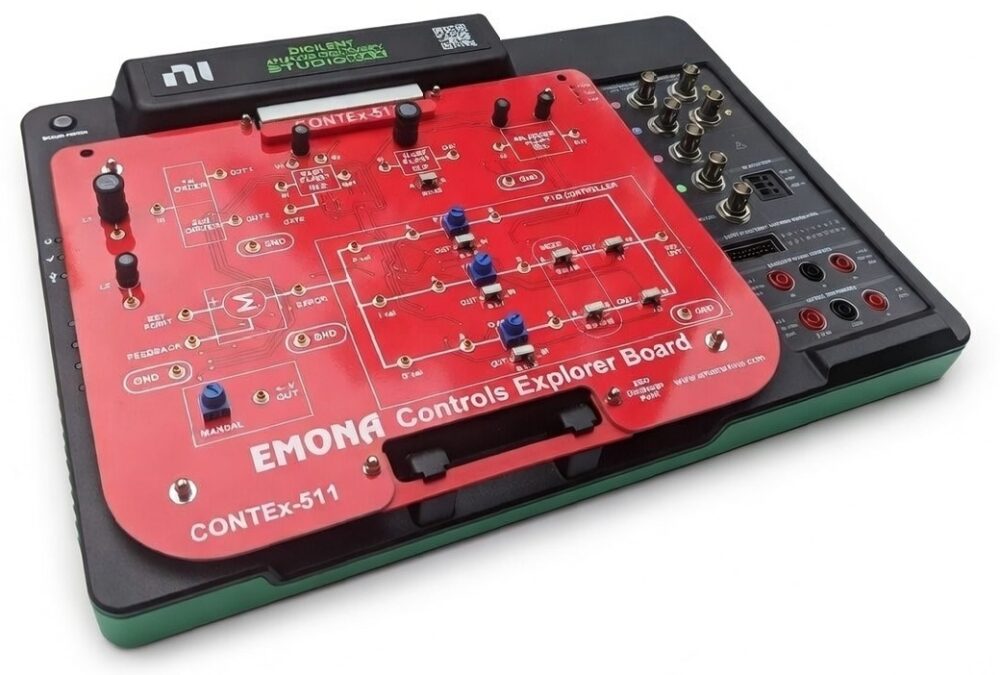

The Emona Controls Explorer, model CONTEx, add-on board for the ADS Max, enables students to patch together controls theory experiments for introductory EE and ECE courses.
ETT-511 Controls Theory Experiments
Lab 1: Introduction to the CONTEx board
Lab 2: First and second order systems
Lab 3: State space approach of First and Second order systems
Lab 4: Stability & Routh-Horwitz criterion
Lab 5: Frequency response and Bode plots
Lab 6: Designing for PID control of plant
Lab 7: Gamifying PID design for optimum performance
