NEW TIMS SDR Gen2
The next evolution of Emona’s Software Defined Radio teaching platform.
4 independent baseband (48kSps) 10-bit analog inputs and outputs
4 independent baseband (48kSps) digital inputs and outputs
Selectable digital clock output
USB-C interface to PC
Custom GRC Sink and Source blocks for creating GRC programs.
Experiments Included
INTRODUCING I/Q QUADRATURE MODULATION WITH PHASOR REPRESENTATION

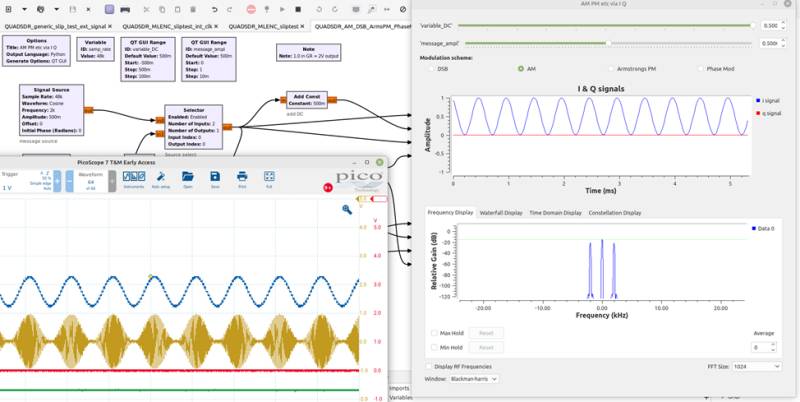

ANALOG AM, DSB, ARMSTRONG’S & PM GENERATION USING I/Q MODULATION
IMPLEMENTING BASEBAND FM IN SDR WITH HARDWARE PASSBAND MODULATION AND PLL DEMODULATION
EXPLORING SAMPLING AND RESAMPLING
IMPLEMENTING BPSK IN A NOISY PASSBAND CHANNEL WITH BIT ERROR RATE MEASUREMENTS & EYE DIAGRAM
QUADRATURE BASEBAND MODULATION IN SDR WITH HARDWARE PASSBAND CHANNEL USING DQPSK & GMSK
IMPLEMENTING QAM/QPSK QUADRATURE SCHEMES IN AN AWGN PASSBAND CHANNEL
FREQUENCY DIVISION MULTIPLEXING & DEMULTIPLEXING IN SDR
INTRODUCTION TO OFDM PRINCIPLES USING DISCRETE TIMS MODULES
UNDERSTANDING FFT, IFFT & COMPLEX SIGNALS I / Q INTERACTIVELY
DETERMINING EQUALISATION IN A BANDPASS CHANNEL FOR OFDM RECOVERY
OFDM IN BANDPASS CHANNEL WITH EQUALISATION AND DATA RECOVERY
CYCLIC PREFIX INSERTION IN OFDM AND IMPACT ON ISI
IMPLEMENTATION OF RADAR TECHNOLOGY IN COMMUNICATION SYSTEMS
TIMS Legacy SDR
The Unique TIMS Software Defined Radio Teaching Solution
Quickly and easily introduce students to the world of SDR, with both software and hardware. Our experiment template files help you code your own experiments without tedious file downloads, Linux installations and compilation.
TIMS-SDR Kit is zero-install, plug-and-play.
Includes complete Linux and latest GNU Radio on USB stick
Unleash the power of GNU Radio with TIMS
Why TIMS SDR
TIMS-SDR is a ONE-OF-A-KIND Solution for Professors to quickly introduce educational Software Defined Radio to students, using the TIMS block diagram approach and the SDR interface offered along with the module.
What is included?
Standard, single-slot, TIMS-SDR Plug-in module for the TIMS-301C System
USB Stick with Linux and GNU Radio pre-installed
Quick start user guide and experiments
SDR UTILITIES MODULE interfaces to GNU Radio via USB port
Dual I and Q baseband analog outputs for generating
Dual I and Q baseband analog inputs for IQ receiver structures
Dual, variable cut-off RRC Low Pass Filters for reconstruction or receiver application
Comprehensive GNU Radio (GRC) Interfacing
TIMS-SDR Kit is a zero-install, plug-and-play, current-version GNU – Radio compatible hardware and software package which enables the student to quickly and easily experiment with the graphical GNU Radio Companion software tools in the TIMS telecommunications platform with real signals.
FASTEST SOLUTION TO AN EDUCATIONAL SDR COURSE:
1. Avoid having to install Linux in a VM, or dual-boot from Linux
2. Avoid finding and installing the correct version for your OS
3. Avoid having to use a Linux machine and building to suit your version
4. No need for C or Python or GitHub knowledge.
5. Supported by an enormous open source community http://www.gnuradio.org
6. Works with any GNU Radio compatible hardware including USRP™ and SDR dongles for further extension work.
To discuss your course structure, and the possibilities of integrating TIMS SDR into your curriculum, please contact us now. We could give you a tailored advice on the best possible solution for your department.
